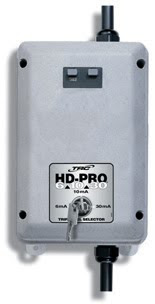

HD Pro TRC High Power GFCIs and ELCIs


TRC manufacturers High Power Ground Fault and Equipment Fault products for personnel and equipment safety.


Please view the TRC Safety Ground Fault Video Here.


The below series of HDPRO units cover 30 and 60 amps and voltages of 277, 480, and 208-240.

Configured for both in-line and bulk head mount. Engineered to trip within 25 milliseconds. Protects:

�� Motors �� Pumping Systems �� Pressure Washers Has 2’of cable on both line and load side. To prevent equipment startup after

GFCI/ELCI trips,manual reset required. Will reset on power restoration following disruption of primary power. 6.10.30TM key enable strip level selection and locking at a trip level with key removal.


PDF link is Here.


TRC HD-Pro GFCI / ELCI 24396-001

Volts/Amps: 277V/30A

Cord Gauge: 10/3 AWG.

Trip Level: 6, 10 & 30mA

Single Phase


TRC HD-Pro GFCI / ELCI

24672-001

Volts/Amps: 480V/60A

Cord Gauge: 4/4 AWG.

Trip Level: 6, 10 & 30mA

Three Phase


TRC HD-Pro GFCI / ELCI

24542-001

Volts/Amps: 208-240V/60A

Cord Gauge: 4/4 AWG.

Trip Level: 6, 10 & 30mA

Three Phase


TRC HD-Pro GFCI / ELCI

24846-001

Volts/Amps: 208-240V/30A

Cord Gauge: 8/5 AWG.

Trip Level: 6, 10 & 30mA

Three Phase


TRC HD-Pro GFCI / ELCI

24646-001

Volts/Amps: 480V/30A

Cord Gauge: 10/4 AWG.

Trip Level: 6, 10 & 30mA

Three Phase


The below HD Pro models are al 60 amps and come in voltages of 120, 380 and 240.

Configured for both in-line and bulk head mount. Engineered to trip within 25 milliseconds. Protects:

�� Motors �� Pumping Systems �� Pressure Washers Has 2’of cable on both line and load side. To prevent equipment startup after

�� Manufacturing Equipment �� Welders �� Hoists

ELCI trips, manual reset required. Will reset on power restoration following disruption of primary power.


PDF link is here.


TRC HD PRO GFCI / ELCI 24520-001

�� Volts/Amps: 120V/60A �� Cord Gauge: 4/3 AWG. �� Trip Level: 10 mA �� Single Phase


TRC HD-RPO ELCI / GFCI 25560-001

�� Volts/Amps: 380V/60A �� Cord Gauge: 4/4 AWG. �� Trip Level: 30 mA �� Three Phase


TECHNOLOGY RESEARCH CORP HD PRO ELCI / GFCI 24530-001

�� Volts/Amps: 240V/60A �� Cord Gauge: 4/4 AWG. �� Trip Level: 10 mA �� Three Phase



The below TRC HDPRO units are rated 60 amps and 80 amps and have voltages of 208-240, 480 and 600.


PDF link is here.


TRC HD PRO HIGH POWER ELCI / GFIC 24786-001

�� Volts/Amps: 208-240V/80A �� Cord Gauge: 4/4 AWG. �� Trip Level: 6, 10 & 30 mA �� Three Phase


Technology Research HD-PRO ELCI / GFCI 24946-003

�� Volts/Amps: 600V/60A �� Cord Gauge: 4/4 AWG. �� Trip Level: 6, 10 & 30 mA �� Three Phase


HD PRO by TRC High Power GFCI / ELCI 24796-001

�� Volts/Amps: 480V/80A �� Cord Gauge: 4/4 AWG. �� Trip Level: 6, 10 & 30 mA �� Three Phase


HD-PRO TRC High Power GFCI / ELCI 24992-001

�� Volts/Amps: 600V/80A �� Cord Gauge: 4/4 AWG. �� Trip Level: 6, 10 & 30 mA �� Three Phase


The below TRC Units are EGFPDs and are CSA approved. the units are 30 and 60 amps and 208/240 and 480 volts.

EGFPD = Equipment Ground Fault Protection Device


Configured for both in-line and bulk head mount. Engineered to trip within 25 milliseconds. Protects:

�� Motors �� Pumping Systems �� Pressure Washers To prevent equipment startup after EGFPD or GFCI/ELCI trips, manual reset re-

�� Manufacturing Equipment �� Welders �� Hoists

quired. Will reset on power restoration following disruption of primary power. Key en- ables trip level selection and locks at a trip level with key removal.

The PDF file is here.


TRC 44110 EGFPD ( CSA Approved)

�� Volts/Amps: 208-240V/30A �� Trip Level: 10, 30 & 50 mA �� Three Phase


Technology Research Corporation 44140 EGFPD CSA Approved

�� Volts/Amps: 208-240V/60A �� Trip Level: 10, 30 & 50 mA �� Three Phase


TRC 44120 EGFPD ( CSA Approved Device )

�� Volts/Amps: 480V/30A �� Trip Level: 10, 30 & 50 mA �� Three Phase


Technology Research Corp. CSA Approved 44130 EGFPD

�� Volts/Amps: 480V/60A �� Trip Level: 10, 30 & 50 mA �� Three Phase


The below TRC Units are ELCIs and and GFCIs are 30 and 60 amps and 208/240 and 480 volts and have adjustable trip points of 6-10-30 amperes (amps).

Configured for both in-line and bulk head mount. Engineered to trip within 25 milliseconds. Protects:

�� Motors �� Pumping Systems �� Pressure Washers To prevent equipment startup after EGFPD or GFCI/ELCI trips, manual reset re-

�� Manufacturing Equipment �� Welders �� Hoists

quired. Will reset on power restoration following disruption of primary power. Key en- ables trip level selection and locks at a trip level with key removal.

The PDF file is here.


Technology Research Corporation 44610 GFCI/ELCI

�� Volts/Amps: 208-240V/30A �� Trip Level: 6,10 & 30 mA �� Three Phase


TRC 44640 GFCI/ELCI

�� Volts/Amps: 208-240V/60A �� Trip Level: 6,10 & 30 mA �� Three Phase


TRC 44620 GFCI/ELCI

�� Volts/Amps: 480V/30A �� Trip Level: 6,10 & 30 mA �� Three Phase


Technology Research Corp. 44630 GFCI/ELCI

�� Volts/Amps: 480V/60A �� Trip Level: 6,10 & 30 mA �� Three Phase


Our complete list of the HD Pro models by TRC is located here.
